CUDY WIFI EXTENDERS ( RE1500 - RE1200)

1 / 10

CUDY WIFI EXTENDERS ( RE1500 - RE1200)

Repeater RE1200 1.0

Overview
Features
Specs

Software Specs

Model Version
RE1200 1.0
CPU
CPU Details	580 MHZ, MIPS24KEC
Memory/Storage
Flash/ROM	8 MB (64 Mbit ) NOR
DDR/RAM	64 MB (512 Mbit) DDR2
Wireless
5 GHz Wi-Fi Speed	867 Mbps
2.4 GHz Wi-Fi Speed	300 Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	2× Fixed
FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
Range Performance	Max: 150 m (492 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
10/100 Mbps RJ45 Ports	1
LED	Signal Strength WPS Power
Physical Buttons	WPS Button Reset Button
Power Input	AC Plug
Power Input Note	EU, US, UK plug are available on corresponding region versions
Power
Power Methods	AC
AC	100V ~ 240V
Reliability
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE
Mechanical
Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
Installation	Plug-In-Socket
Dimension	129.6×80×48.6 mm 5.1×3.15×1.91 inches
Product Weight	UK: 210 g (7.41 oz.),US / EU: 205 g (7.23 oz.)
Package Content
RE1200 Installation Guide
Ordering Information
Retail Package Weight	UK: 356 g (12.56 oz.),US / EU: 369 g (13.02 oz.)
Retail Package Dimension	161×120×96 mm 6.34×4.72×3.78 inches
Units per Carton	30
Carton Net Weight	UK: 10.7 kg (23.59 lbs),US / EU: 11.1 kg (24.47 lbs)
Carton Gross Weight	UK: 11.1 kg (24.47 lbs),US / EU: 12.0 kg (26.46 lbs)
Carton Dimension	50.4×37.7×34.1 cm 19.84×14.84×13.43 inches

Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices.

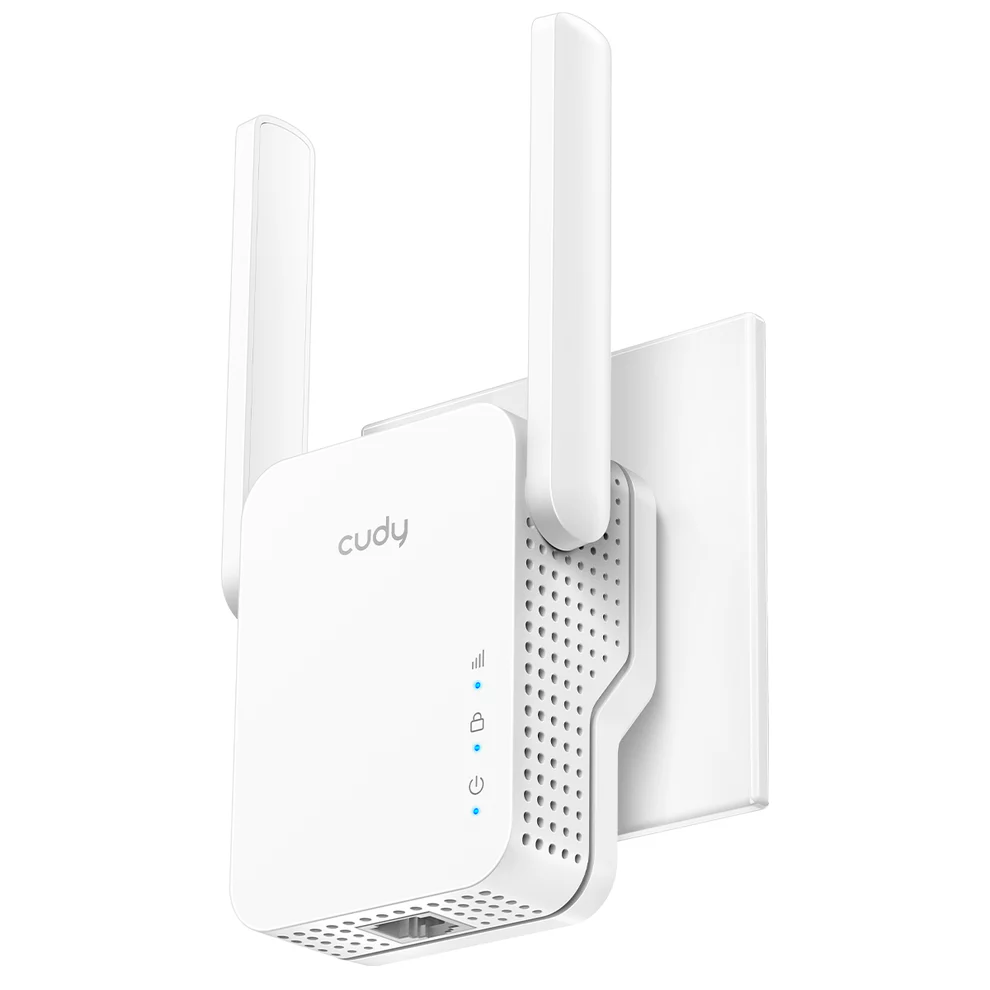

Cudy repeater RE1500

Overview

Features
Specs
Download

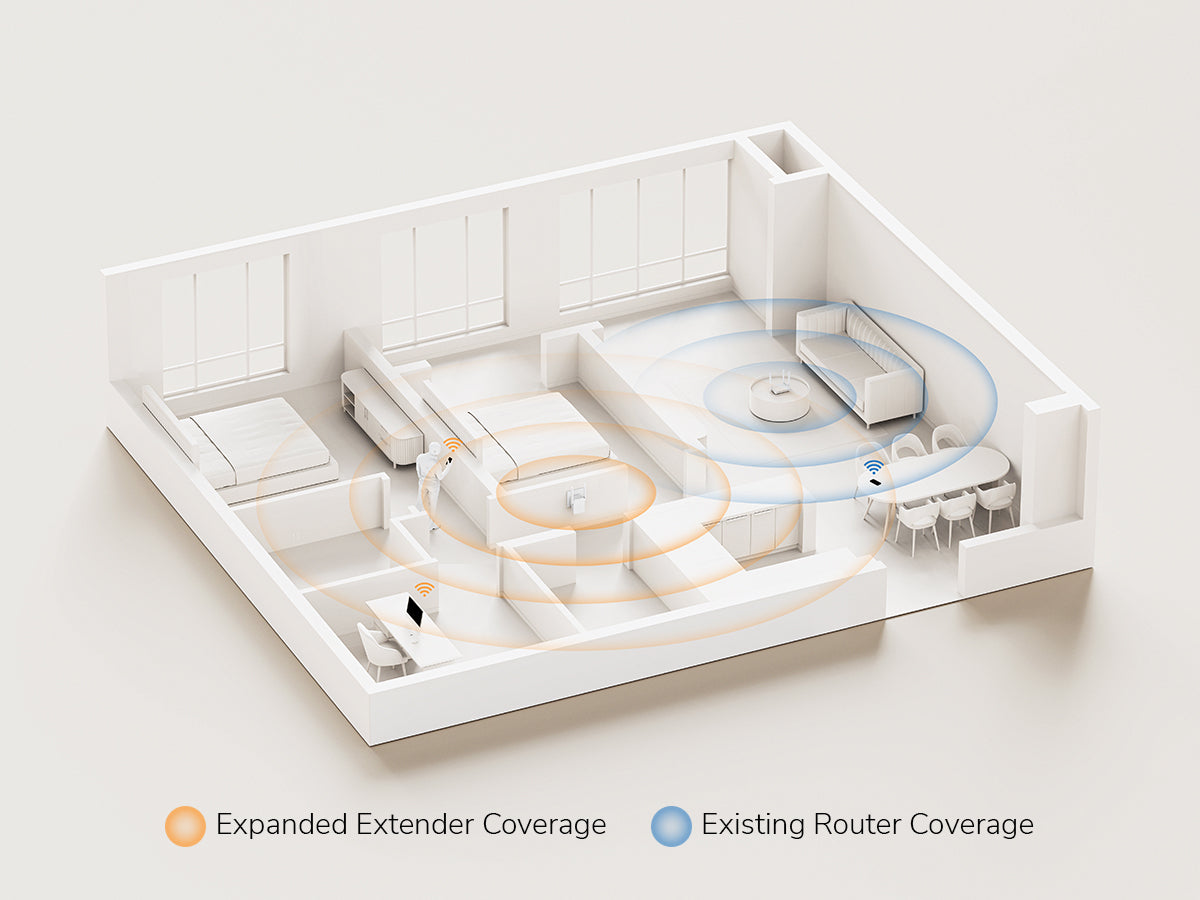

Boost Your Existing Wi-Fi Coverage

Tired of weak signals and frustrating dead zones? The RE1500 Wi-Fi range extender expands your coverage, delivering fast and stable internet to every corner of your home.

Any Router In. Stronger Wi-Fi Out.

Work with Any Router

Universally compatible with all routers, ensuring hassle-free expansion of your network.

High Gain Antennas

Equipped with powerful antennas to enhance signal strength and stability for smoother streaming and gaming.

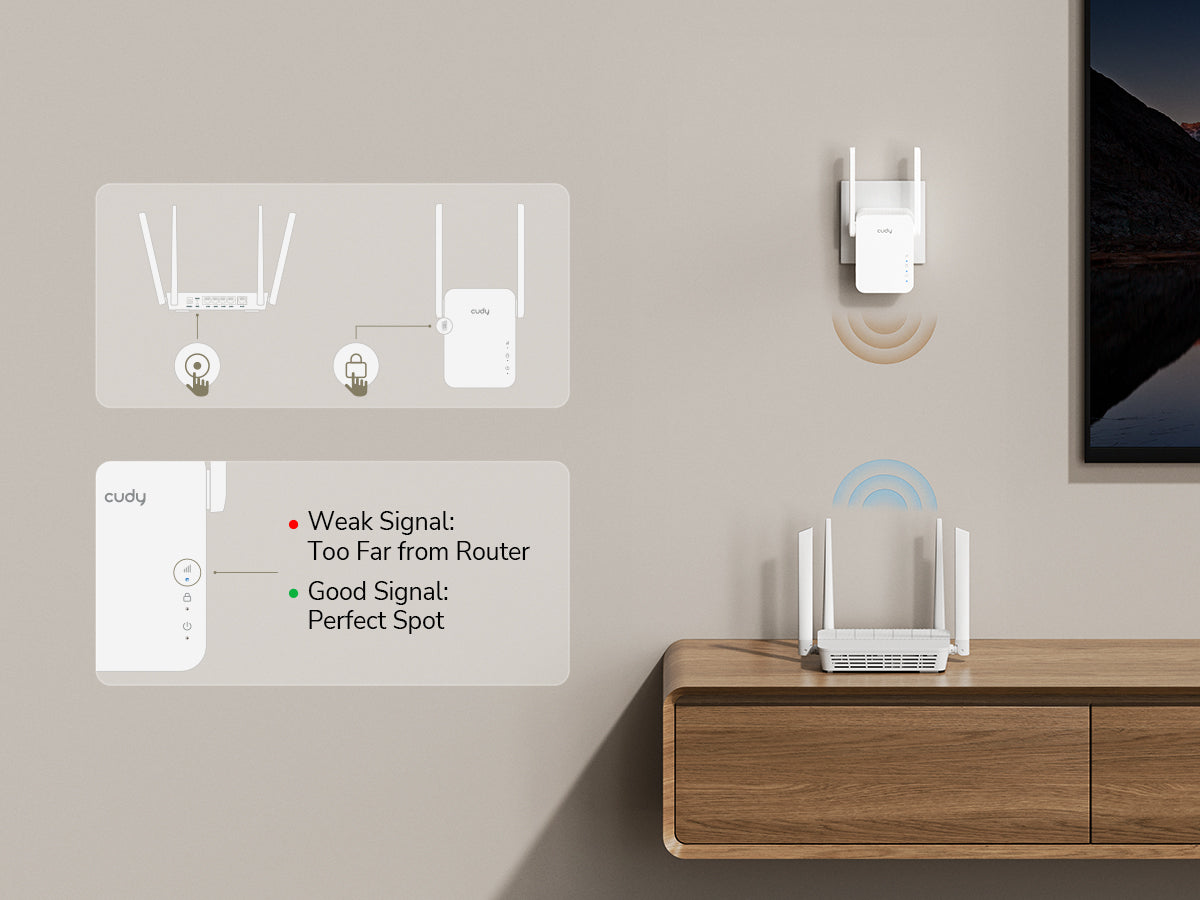

Zero Stress. One-Touch Pairing.

Connect instantly with a simple press of the WPS button - no complex setup required. Use the signal strength indicator to find the perfect spot for optimal performance.

Boosting or Creating a Wi-Fi is Up to You

Range Extender Mode

Extend your existing Wi-Fi signal for wider coverage.

Access Point Mode

Create a new Wi-Fi hotspot using a wired connection for stable and high-speed internet.

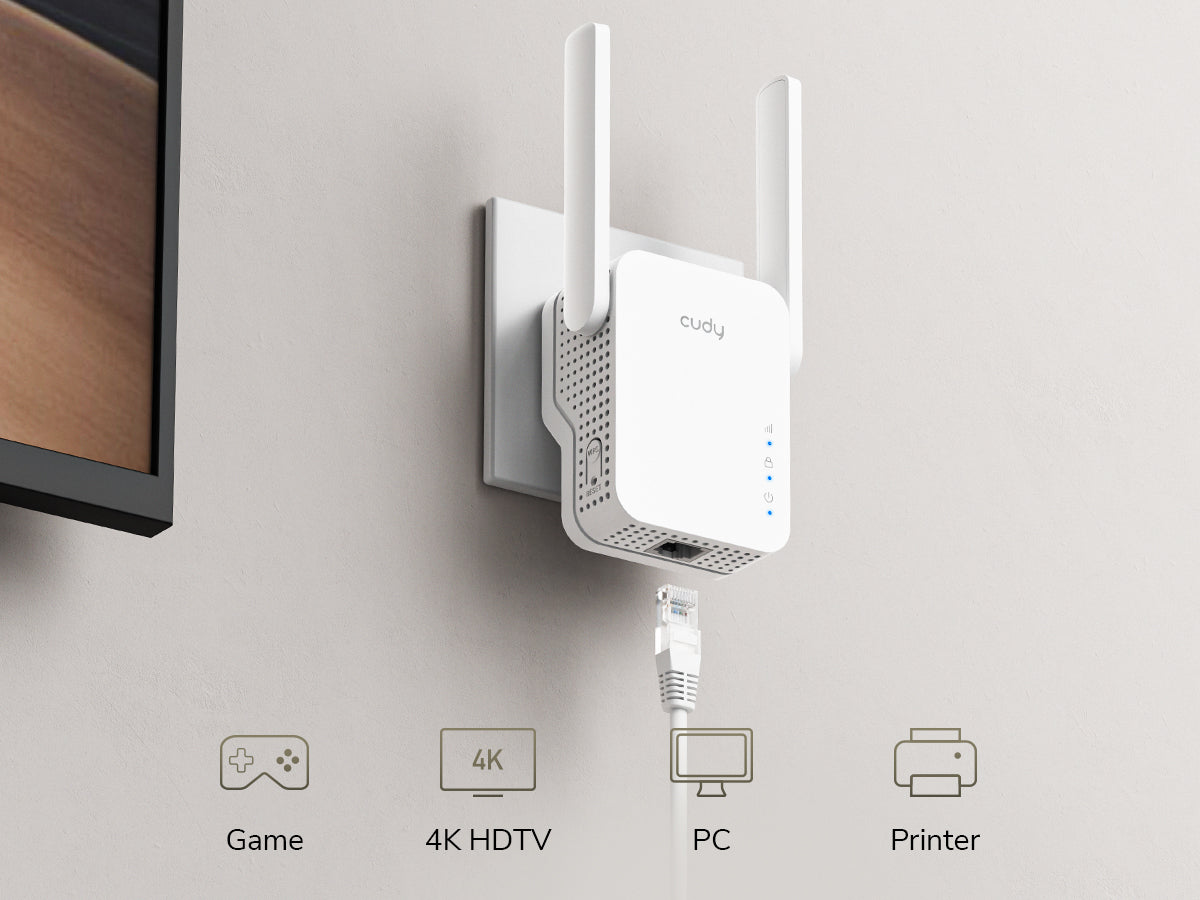

Not Just Wi-Fi, Enjoy Stable Wired Connections Too

In addition to extending Wi-Fi coverage, the high-speed Ethernet port provides a stable and reliable connection for your wired devices like smart TVs, PCs, and game consoles.

Seamless Roaming with Cudy Mesh

RE1500 supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices, allowing you to move freely between rooms without the need for manual network switching.

Hardware Specs

Software Specs

Model Version
RE1500 2.0
Memory/Storage
Flash/ROM	16 MB (128 Mbit) NOR
DDR/RAM	128 MB (1 Gbit) DDR3
Wireless
5 GHz Wi-Fi Speed	1201 Mbps
2.4 GHz Wi-Fi Speed	300 Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	2× Fixed
FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
Range Performance	Max: 150 m (492 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
10/100 Mbps RJ45 Ports	1
LED	Signal Strength WPS Power
Physical Buttons	WPS Button Reset Button
Power Input	AC Plug
Power Input Note	EU, US, UK Plug are Available
Power
Power Methods	AC
AC	100V ~ 240V
Max Power Consumption (W)	10W
Reliability
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE
Mechanical
Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
Installation	Plug-In-Socket
Dimension	80×60×38 mm 3.15×2.36×1.5 inches

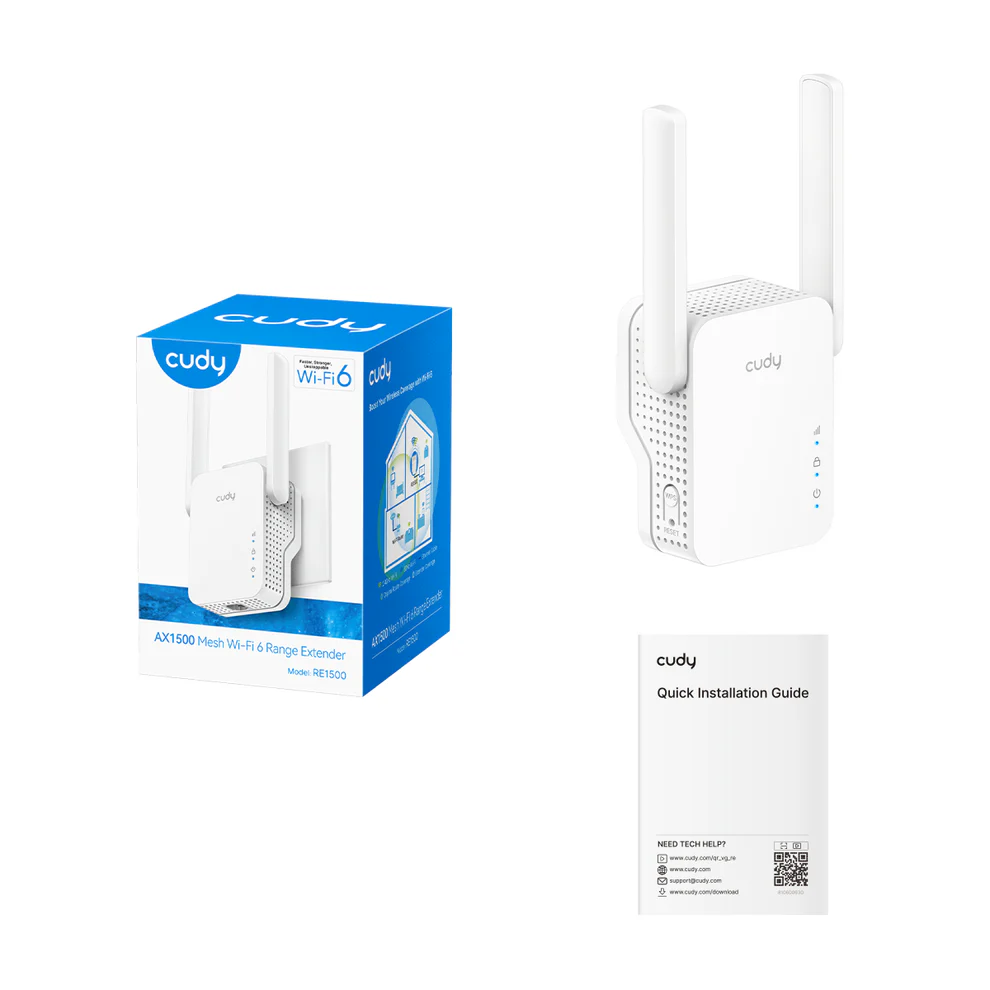

Package Content
RE1500 Installation Guide
Ordering Information
Retail Package Dimension	74×84×107 mm 2.91×3.31×4.21 inches
Units per Carton	60
Carton Dimension	40.1×36×34.6 cm 15.79×14.17×13.62 inches

Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices.
